Serial

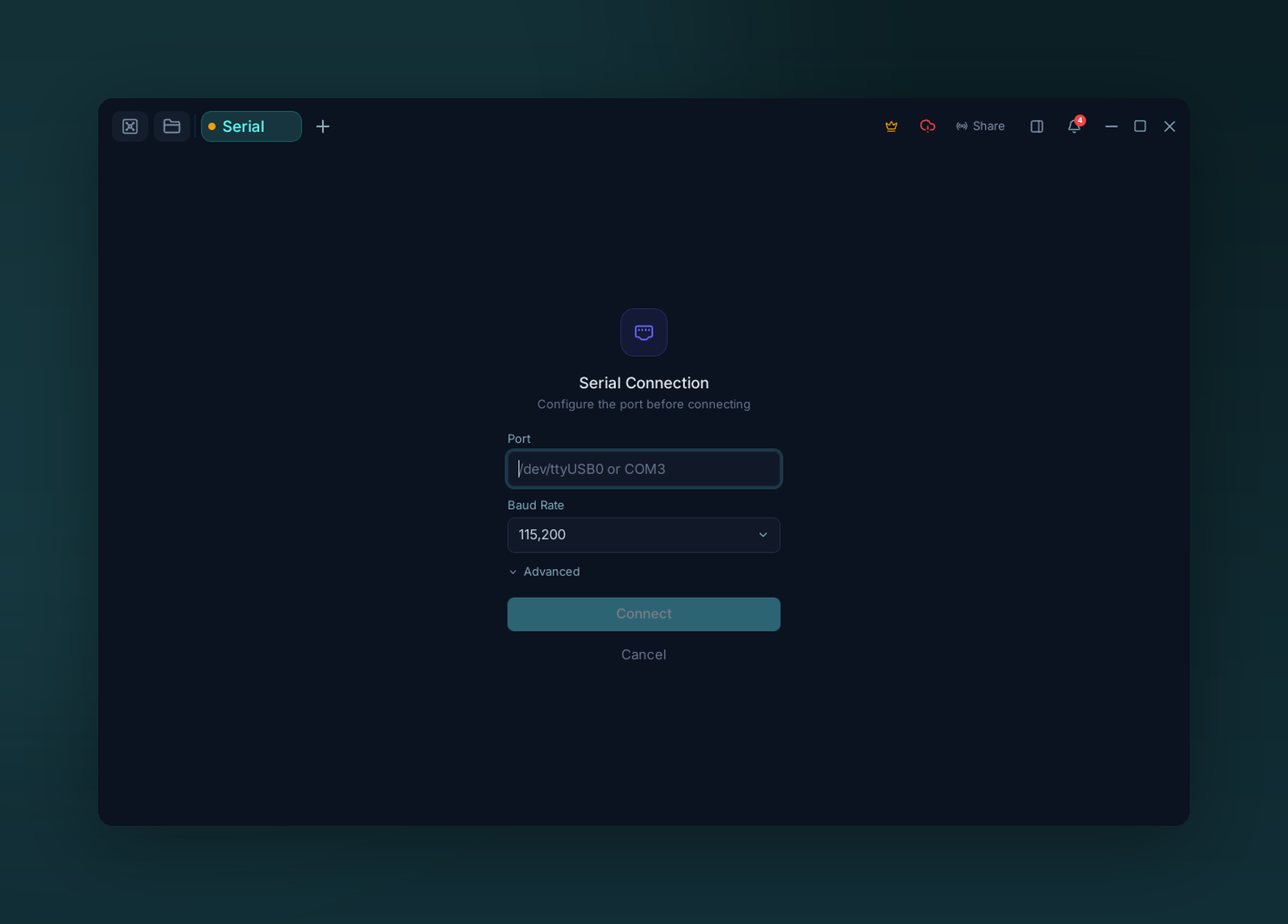

The serial connection form

Connect to a serial device — pick the port and baud rate.

For physical devices: routers, microcontrollers, embedded boards.

Pick a port

The Port field suggests detected serial devices as you type — or enter a path directly:

  • Windows — COM1, COM2, …
  • macOS / Linux — /dev/tty.usbserial-*, /dev/ttyUSB0, …

If you plug in a device after opening the form, close and reopen it to see the new port.

Settings

Field Default Options
Baud 115200 presets from 300 to 921600, or custom (saved hosts)
Data bits 8 5, 6, 7, 8
Parity none none, odd, even
Stop bits 1 1, 2
Flow control None None, XON/XOFF, RTS/CTS

Defaults match 8-N-1 — try those first.

Advanced

  • Pre/post command — sent to the port before/after the session.
  • Terminal encoding — non-UTF-8 firmware.
  • Auto-reconnect — reopen the port after a drop (on by default; turn it off for boards you reflash).

DTR, RTS and BRK controls are in the session's status bar.

Permission denied on Linux?

sudo usermod -aG dialout $USER and log out/in.
